MiskolcGG1380 Grinding machine

Single station translational magnetic polishing machine

Tiktok Online National Hotline
400-800-3945

Product introduction PRODUCT INTRODUCTION

Product Model	GG1380
Dimensions	13807201088
Grinding groove size	1200*520(drum)
Power supply	AC380v(50Hz)16A
Motor power	4KW*1
Equipment weight	410KG
Grinding capacity	25-35Kg
Operation mode	Positive and negative rotation
Steel needle	10kg
Lapping liquid	50L
Motor speed	1400 RPM
Diameter	0.2-2.00mm

Suitable for all kinds of light iron metals, non-iron metals, hard plastics and other precision parts finished products, removing rough edges, polishing, Miskolccleaning and other precision grinding work completed at one time; It is suitable for grinding all kinds of irregular parts, holes, pipes, dead angles and cracks

GUANGU METAL POLISHING MACHINE

Consumables: 304 stainless steel magnetic needle, lapping fluid, brightener
Equipment accessory: siemens motor, siemens inverter, N50H High temperature resistant rubidium iron boron strong magnetic
Off-the-shelf finished goods, Can be customized according to customer requirements

Manufacturer direct supply
Quality of craftsmanship
Easy installation Easy to use
Strong magnetic lifetime warranty

Product feature PRODUCT CHARACTERISTICS

01: Magnetic polishing has a fast cleaning speed, with an average grinding time of 5-15 minutes;

02: The magnetic cleaning machine is easy to operate, and one person can operate multiple magnetic cleaning machines;

03: Magnetic cleaning workpieces are easy to separate, and can be easily separated from magnetic grinding needles using a sieve, steel needle separator, or vibrating screen;

04: The metal workpiece does not deform after polishing, grinding, and cleaning, and does not affect accuracy;

05: Can remove welding spots, oxide skin, burrs, chamfers, etc. on the surface of the workpiece in one go, saving time and effort;

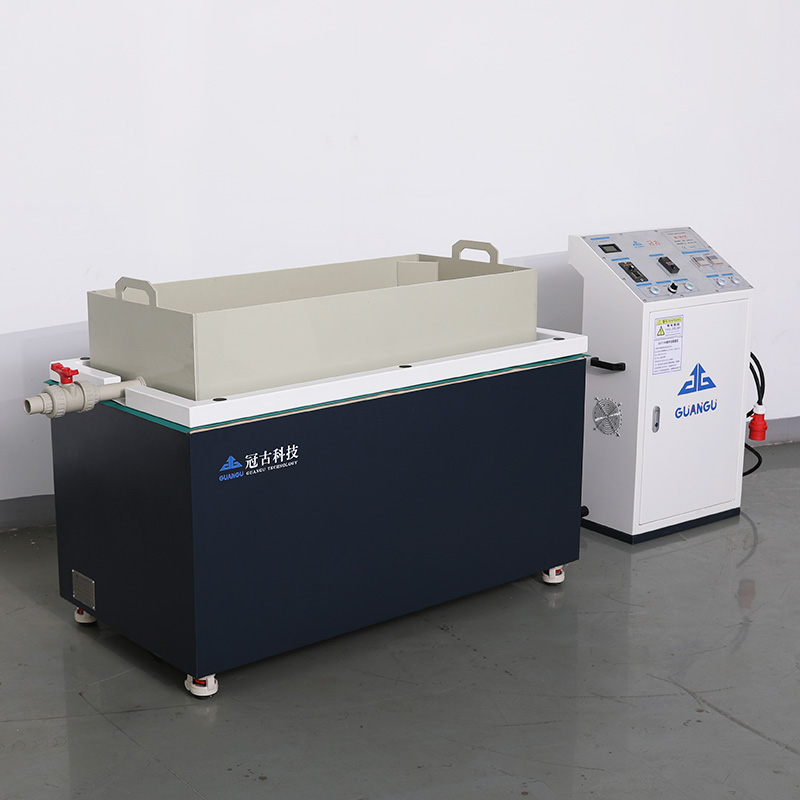

Magnetic Tumbler Polishing Machine PRODUCT DISPLAY

Range of application SCOPE OF USE

1. Precision metal stamping parts 2. Stainless steel parts, 304 stainless steel screws and nuts 3. Magnesium aluminum die casting 4. Zinc aluminum die casting 5. Precision spring, shrapnel parts 6. Electronic, computer and communication parts 7. Walking heart, walking knife, CNC automatic lathe parts 8. Aerospace parts, medical equipment parts

Magnetic tumbler polishing machine advantages PRODUCT ADVANTAGE
