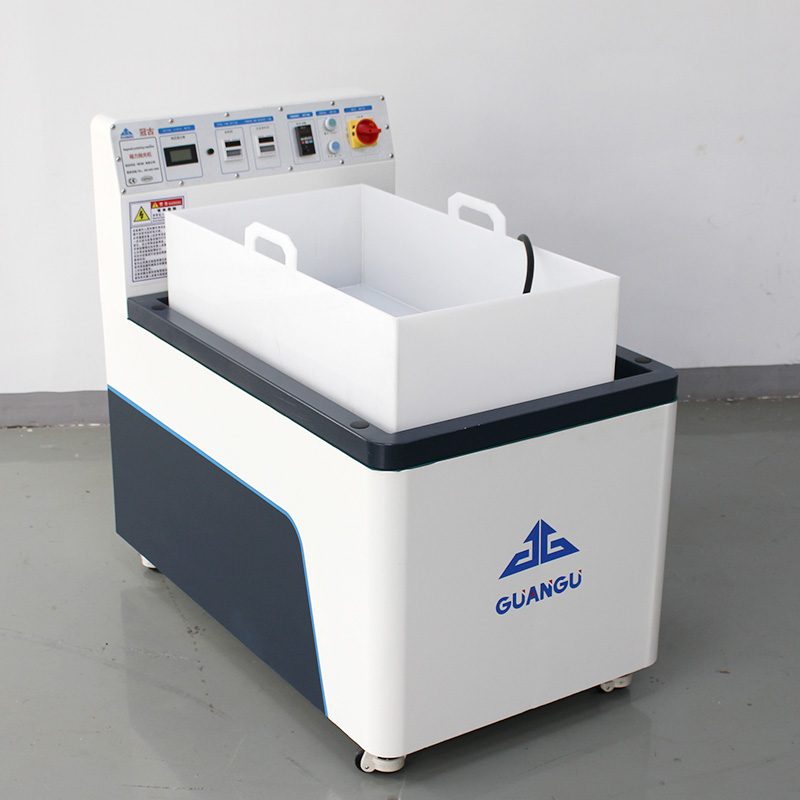

MiskolcGG8850 Buffing machine

The metal magnetic polishing machine uses the power of magnetic field to guide the grinding material (magnetic grinding steel needle) to rotate rapidly and grind the workpiece, so as to achieve efficient grinding and cleaning effects such as removing the rough edge of the metal workpiece (the front), surface polishing, cleaning, cleaning, removing the oxide film, sintering marks and rusting.

Video Hotline
400-800-3945
Product introduction PRODUCT INTRODUCTION
Product ModelGG8850
Dimensions1100*720*1088mm
Grinding groove size800*520mm(square bucket)
Power supplyAC380v(50Hz)16A
Motor power4kw*1
Equipment weight288KG
Grinding capacity20-30Kg
Operation modePositive and negative rotation
Steel needle8kg
Lapping liquid50L
Motor speed1400 RPM
Diameter0.2-2.00mm



The metal magnetic polishing machine uses the power of magnetic field to guide the grinding material (magnetic grinding steel needle) to rotate rapidly and grind the workpiece, so as to achieve efficient grinding and Miskolccleaning effects such as removing the rough edge of the metal workpiece (the front), Miskolcsurface polishing, cleaning, cleaning, removing the oxide film, sintering marks and rusting.

Polishing the surface of the workpiece, polishing, deburring the flying edge, batching, deoxidizing film, to the sintering mark, restoring the metal color cleaning, metal processing debris, residue, batching, surface electroplating, welding spot, metal surface paint removal, precision small profiled parts, irregular parts: removing burr (burr, batching front), polishing, cleaning, chamfering, enhancing surface hardness and other grinding completed at the same time; The minimum size of magnetic steel needle is 0.2mm*3mm, which can precisely grind irregular parts such as holes, pipes, cracks, dead angles, right angles and screw teeth of metal parts; The workpieces do not collide with each other in the process of grinding, and the workpieces of the product do not deform after magnetic grinding, do not affect the accuracy, and do not damage the surface. Guanggu magnetic rolling machine has strong stability and high efficiency; The grinding speed is fast, the average grinding time is about 3 minutes to 20 minutes, and the replacement of the workpiece is fast.


不锈钢螺旋风管

Aluminum Polishing Machine

The consumables mainly used in magnetic polishing machines include magnetic grinding steel needles, also known as magnetic polishing machine needles, stainless steel grinding liquids, brighteners, copper aluminum grinding liquids, spot removal grinding liquids, steel needle separators, grinding grooves, grinding buckets, etc.

  • 厂家直供Manufacturer direct supply
  • 匠心品质Quality of craftsmanship
  • 安装方便Easy installation Easy to use
  • 强磁终身质保Strong magnetic lifetime warranty


Product feature PRODUCT CHARACTERISTICS
01

Magnetic steel needles are semi permanent consumables with low losses;

02

Guangu's polishing and grinding fluid belongs to a highly concentrated type of medicine, which is mixed with water in a ratio of 1:50;

03

The PP grinding bucket is made of high-quality raw materials, with a cylindrical body welded in the middle and no dead corners for grinding;

04

The magnetic needle is made of imported 304 stainless steel material, which does not rust and is more durable;

05

The company has independent designers who can customize various consumables and fixtures according to customer needs;



Aluminum Polishing Machine PRODUCT DISPLAY
磁力研磨抛光耗材


Range of application SCOPE OF USE

1. Precision metal stamping parts 2. Stainless steel parts, 304 stainless steel screws and nuts 3. Magnesium aluminum die casting 4. Zinc aluminum die casting 5. Precision spring, shrapnel parts 6. Electronic, computer and communication parts 7. Walking heart, walking knife, CNC automatic lathe parts 8. Aerospace parts, medical equipment parts

  • MiskolcGG8850 Buffing machine


GuanGu stainless steel polishing machine finisher advantages PRODUCT ADVANTAGE
  • 故障率低

    First line brand accessories, low failure rate

  • 操作简单

    Simple operation, one person to operate more than one

  • 不伤工件

    Does not damage the workpiece, does not affect the accuracy

  • 成本低

    Low consumable loss and low cost

  • 无死角

    Inner hole, special-shaped hole and blind hole can be ground and polished

  • 应用广

    Suitable for all kinds of materials, all kinds of shapes
